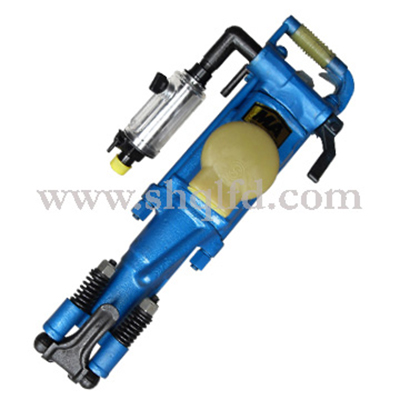

Pneumatic rock drill

This kind of pneumatic rock drill is specially used for narrow underground drilling and blasting work. Quality reliable and high drilling efficiency.

Products Details



YO18

Y19A

Y20LY

Y26

YT23

YT24

YT27

YT28

YT29A

YSP45

Weight(kgs)

18

19

18

26

24

24

27

26

27

44

Length(mm)

550

600

609

500

628

678

668

661

659

1420

Piston stroke(mm)

45

54

50

70

55

70

60

60

60

47

Air consumption(L/S)

20

37

21.6

47

80

66.7

83.3

82

88

113.3

*      air consumption of YO18,Y19A,Y20LY,Y26 is based on 0.4Mpa working pressure *      air consumption of YT23,YT24,YT27,YT28,YT29A,YSP45 is based on 0.63Mpa working pressure
Pusher leg for rock drill



FT140B

FT140BD

FT160A

FT160B

FT160BC

FT160BD

FT100

Weight(kgs)

16

14

17

16

17

15

12

Min. Length (mm)

1687

1400

1668

   1428

1800

1400

1340

Max. Length (mm)

2937

2365

3006

2526

3165

2365

2340

Feeding length(mm)

1250

965

1338

1098

1365

965

  1000
Suitable machines

YT24

YT24

YT23 YT23D

YT27 YT29A

YT23

YT23D

YT27

YT29A

YT28

YT28

Y19A Y20LY
